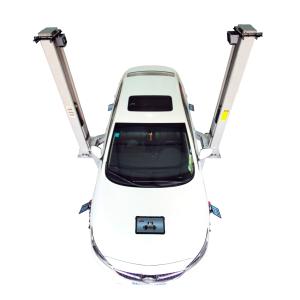

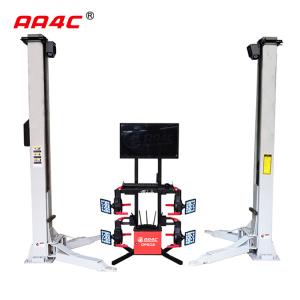

Model DF502 consists of five high-definition cameras forming a closed measurement system. It is placed above the two-post lift, which can avoid repeated purchase of special equipment, achieve the same purpose by using existing equipment, and save costs..
Main features:
Embedded System: The core algorithm is implemented by an embedded system, with real-time response and power consumption saving.
Android OS:Tablet with Android system, software runs smoothly, convenient and fast.
Convenient and Fast Calibration: The measurement accuracy can be inspected, checked, and recalibrated on-site by oneself.
Lightweight: 5D wheel aligner single unit weight:1700g the lightest among similar products, easy and effortless to pick up and handle
Small:5D wheel aligner singleunit
size:150mm×120mm×120mm the smallestamong similarproducts.during wheel alignment measurement,thereis no need toworry aboutthe measuredvehicle, colliding with theequipmentand causing damage
Seat Type Charging System: Seated charging system, convenient for management and no manual intervention required.
Long Battery Life:The battery life exceeds 8 hours,meeting the needs of a full day's work.
Packing size :750*530*750mm
Weight: 42kg
Measurement Precision
| Measurement Item | TOE | Camber | Caster | KPI | SETBACK | THRUST ANGLE | WHEELBASE | TREAD |
| Precision | ±2‘ | ±3‘ | ±3‘ | ±3‘ | ±2‘ | ±2‘ | ±3mm | ±5mm |
| Measurement Range | ±20° | ±10° | ±20° | ±20° | ±9° | ±9° | 1m-2m | 1.5-4.5m |
